Engineering Automation for the Real World

Do you know your loads?



Can you:
-interpret your dynamic FEA results?
-iterate designs with complex loads?

True-Load, True-LDE True-QSE software enable you to answer these questions and many more.




True-Load


True-LDE


True-QSE

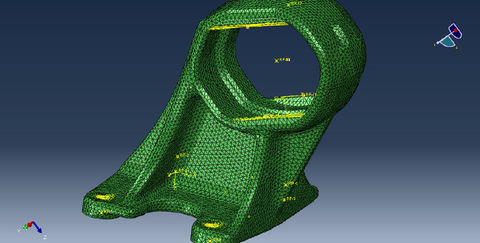

​​Create multi-channel load cells leveraging your parts and FEA models.
  • Determine optimal strain gauge placement from FEA model
  • Calculate Load Proportionality Matrices
  • Use Measured Strains to back calculate Operating loads
  • Create Quasi-Static Events to be used with True-QSE
​​Interactive Linear Dynamic Event analysis from Abaqus supporting:
  • *MODAL DYNAMIC
  • *STEADY STATE DYNAMIC
  • *RANDOM RESPONSE
Interactively create:
  • Nodal Functions
  • Elemental Functions
  • Full Field Results
Optionally include the effects of pre-load on all results.
​​Interactive Quasi-Static Event analysis from FEA models.

Perform linear superposition of FEA results via scaling functions to create:
  • Nodal Functions
  • Elemental Functions
  • Full Field Results


Available in HyperWorks and Abaqus/CAE

Available in Abaqus/CAE



Available in HyperWorks and Abaqus/CAE



Contact us for more information
