True-QSE:
Explore Quasi-Static Events
True-QSE shows the full field FEA response to loads and enables design exploration with Nodal / Elemental Functions, Design of Experiment, and Gauges of Interest.
True-QSE interfaces with durability software with loading functions and duty cycle exports.
When combined with load reconstruction from True-Load, True-QSE enables virtual design iterations. After collecting strain data on an initial prototype, the loads calculated with True-Load can be used to explore results in design variations.

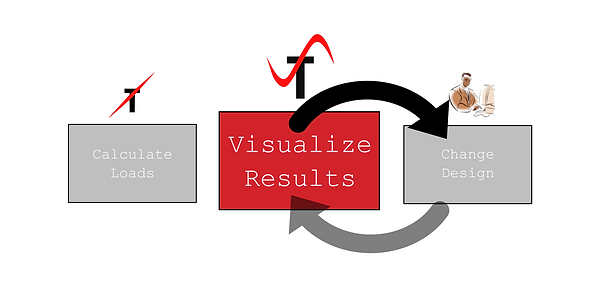

The True-QSE Workflow: Quasi-Static Event Exploration
1. Calculate loads with True-Load/Post-Test (learn more)
2. Visualize results in True-QSE
3. Change FEA design and solve with unit loads
4. Repeat: Visualize results in True-QSE and make FEA design changes as necessary
5. Complete a final physical test with high confidence in the design that is built
Virtual design iterations with True-Load and True-QSE reduce design-build-test cycles and increase confidence in designs before they are built.
The Details

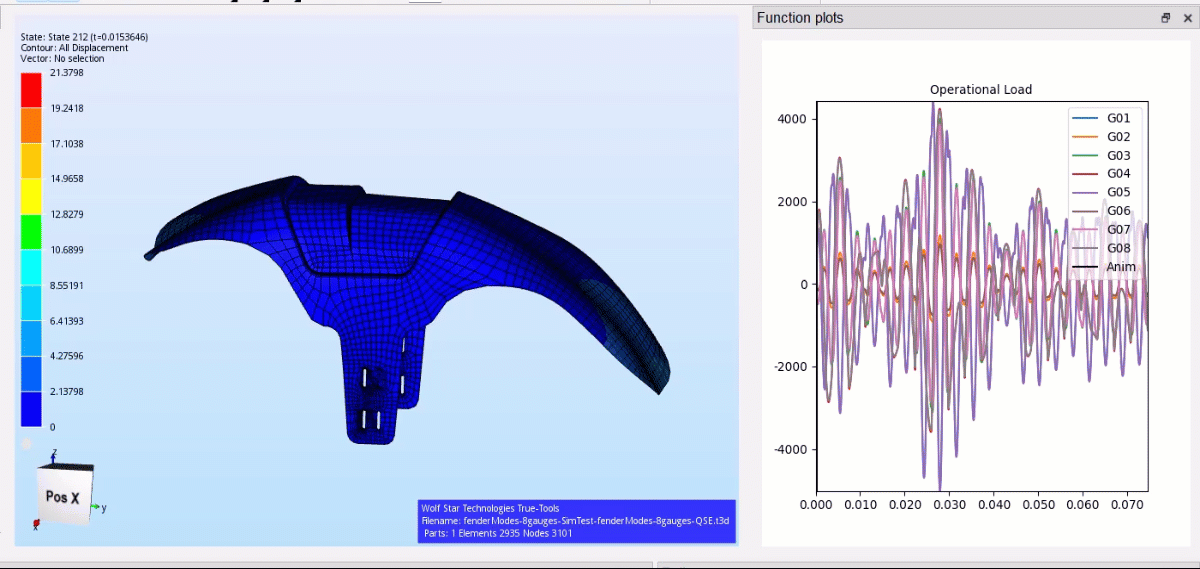

Full Field Results
Visualize the full field results of the structure in response to operational loads.

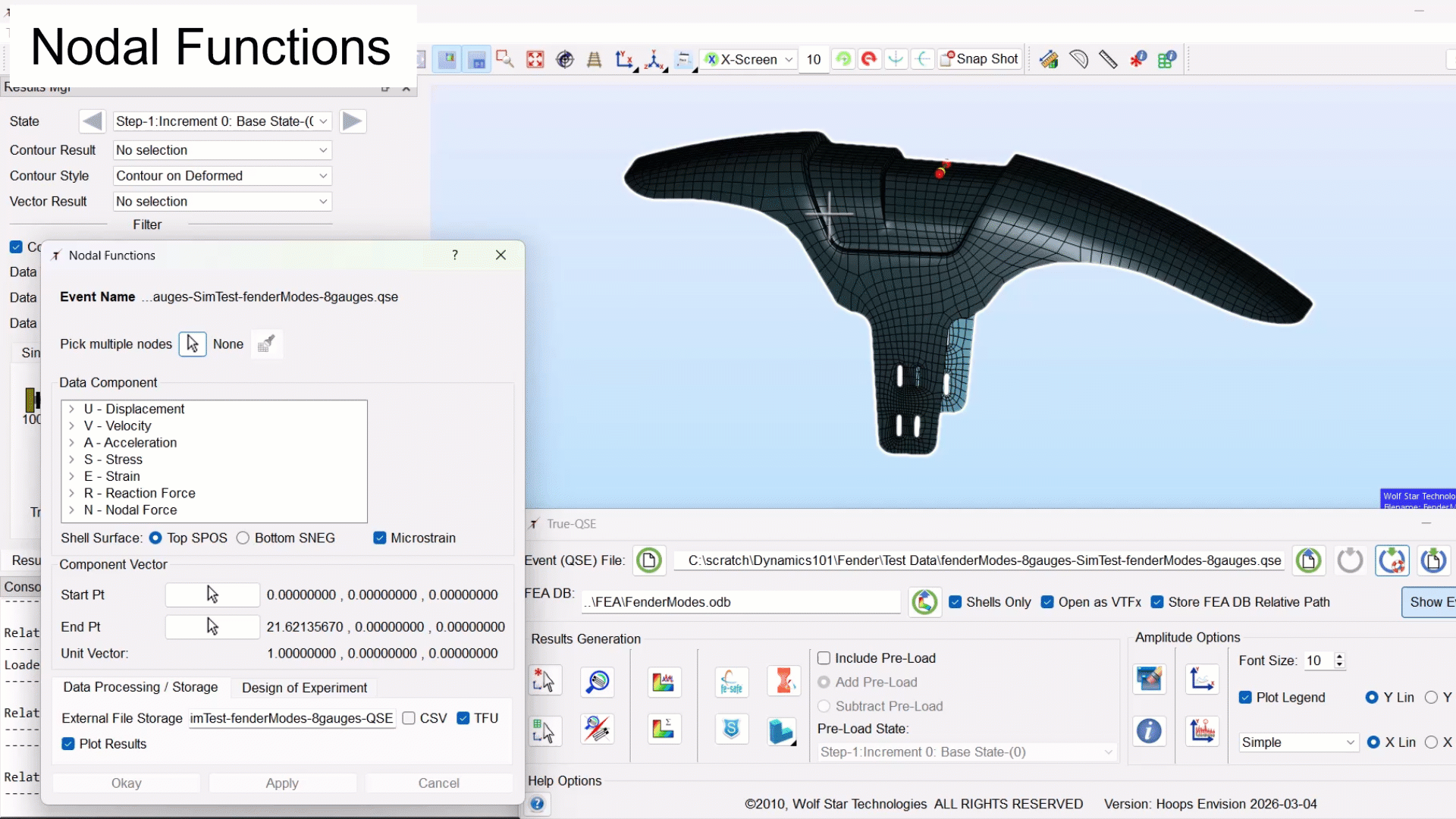

Nodal / Elemental Functions

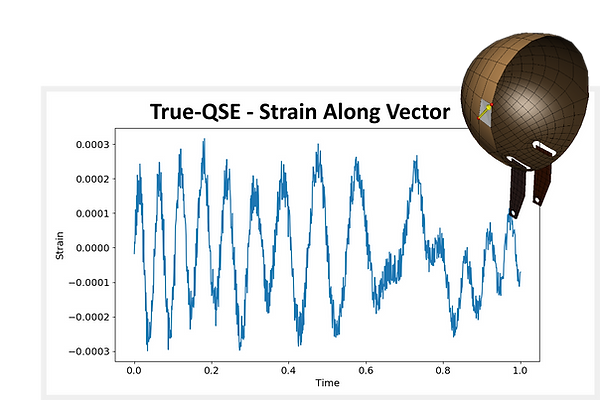

Generate response functions at any node or element on the model.
Advanced Features
Peak Value Results: Explore results during key events.
Gauges of Interest: Explore results in key locations.
Design of Experiment: Test the influence of each load case.
Test Data Comparison: Adjust virtual gauge placement to match physical locations.
A Proven Solution
True-Load, True-QSE, and True-LDE were developed out of necessity by Dr. Tim Hunter during a long career in product development. They are built to deliver products with many ease-of-use and advanced features. Training and support are included to ensure success.
